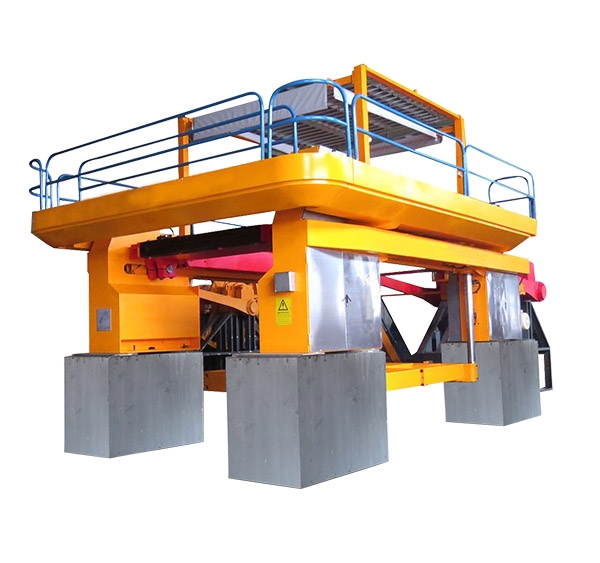

Stone Gang saw石材荒料框架鋸

領跑智能制造新“石”代

Stone Gang saw石材荒料框架鋸

所屬品牌:

所屬類別:產品庫

想了解更多相關產品信息,請聯系我們!

0594-2197723
hualongmc@163.com
我要咨詢
  • 產品說明
  • 技術參數

主要特點
1. 采用升降式輸送臺的鋸切方式,并采用變頻驅動。

2. 鋸架的往復擺動采用了靜壓圓形導軌(gui)結(jie)構。

3. 采用了(le)雙曲(qu)柄和雙連桿結構。

4. 專(zhuan)用的螺旋桿(gan)抗沖擊機(ji)械防護裝置。

5. 電流波動小,電機使用壽命長。

6. 運行(xing)阻力小(xiao),節能(neng)且(qie)省電。

7. 這個(ge)鋸架可以(yi)安裝 100 個(ge)金剛石鋸片。

8. 該(gai)鋸架具有(you)較(jiao)高的直線度、良好的切割質量和較(jiao)高的產(chan)量。

9. 它(ta)更(geng)適合用于超薄(bo)鋸片以(yi)及(ji)切割薄(bo)板(ban)。

10. 采用了帶有人機界面的智能控制系統,便于操作,能夠監測設備的各種工作狀態,并顯示故障原因警報提示。

Main Features

1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and
double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 100 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states
of the equipment, and display fault cause alarm prompt

TECHNICAL DATA
Model No.
HLKJ-100/S800
HLKJ-100/S800
Number of blade
pc
80
100
Blade length
mm
4400
4400
Working stroke of blade
mm
800
800
Max.cutting size of block
mm
3200x2500x200
3200x2500x200
Min.cutting thickness of slab
mm
16
16
Cutting feed
mm/h
50-400
59-400
Power of main motor
kw
110
132
Block trolley size
mm
2050x3200
2559x3200
Gross weight
kw
52000
62000
Dimensions (L x W x H)
mm
11900x5060x4960
11900x5560x4960
名稱 單位 HLKJ-100/S800
鋸條數 pc 100
鋸條規格 mm 4400
鋸條行程 mm 800
主機功率 kw 110
總功率 kw 121
可加工最大荒料尺寸 mm 3200*2000*2000
能切最薄板材厚度 mm 16
荒料車規格 mm 3200*2020
鋸機外形尺寸 mm 11900*5560*4960
鋸機重量 t 62
